Paint Your Partner Rl Setup

This is the first log in the development of cooperative machines. The agent will play a game called Paint Your Partner with its human partner. Eventually, the agent will be composed of a layered architecture of Reinforcement Learning units. However, this post focuses on training an agent to play the game alone, using a custom environment created with Gymnasium and Stable Baseline 3.

Table of contents

• Custom Environment
• Reward Mechanism
• Training
• Validation
• Thoughts

Custom Environment

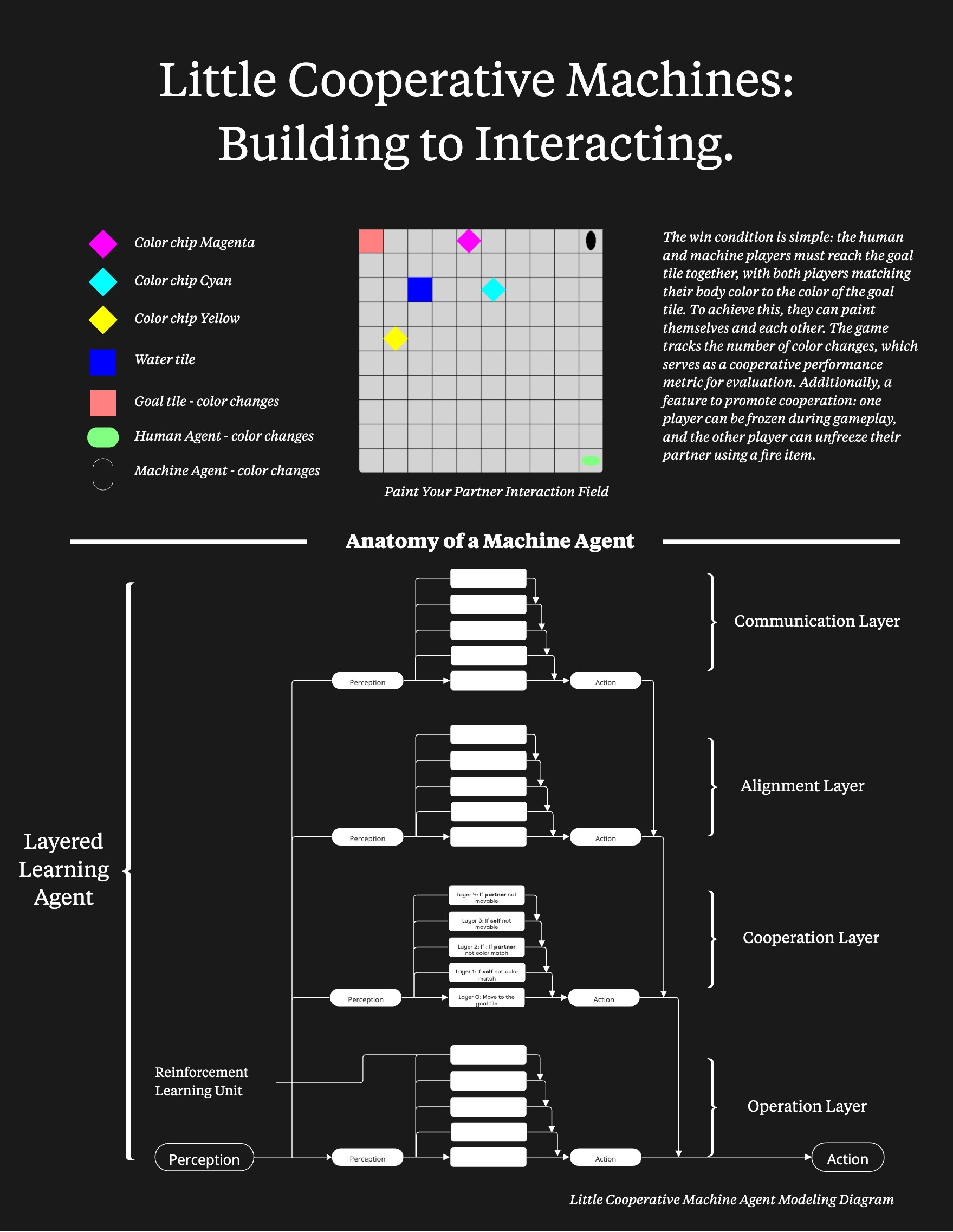

Paint Your Partner

The custom environment I created to train the RL agent is a game environment called Paint Your Partner. The goal of this game is simple: all you need to do is touch the goal tile while matching your body color to the color of the goal tile.

Reward Mechanism

Designing the reward mechanism was the most difficult task. At first, I tried a highly defined version of the reward system; however, I eventually realized that this isn’t how RL works. If we design the reward system too tightly, there will be no need to use RL as the agent’s behavior algorithm. Therefore, after numerous attempts, I decided to design the reward mechanism in a more open manner.

’’’ def step(self, action): info = { “is_success”: False, “TimeLimit.truncated”: False, }

    self.steps_taken += 1
    max_steps = self.grid_size ** 2

    # Handle movement
    if action == 0 and self.agent_pos[0] > 0:  # Move up
        self.agent_pos[0] -= 1
    elif action == 1 and self.agent_pos[0] < self.grid_size - 1:  # Move down
        self.agent_pos[0] += 1
    elif action == 2 and self.agent_pos[1] > 0:  # Move left
        self.agent_pos[1] -= 1
    elif action == 3 and self.agent_pos[1] < self.grid_size - 1:  # Move right
        self.agent_pos[1] += 1

    reward = 0  # Initialize reward

    # Check for water tiles
    if self.water_tiles[self.agent_pos[0], self.agent_pos[1]] == 1:
        self.agent_color = Pallete.TRANSPARENT

    # Check for painting
    if self.agent_color != self.goal_color:
        for color_idx, chip_present in enumerate(self.color_chips[self.agent_pos[0], self.agent_pos[1]]):
            if chip_present:
                new_color = self._combine_colors(self.agent_color, self.cmy[color_idx])
                self.agent_color = new_color

    # Check if the agent has reached the goal with the correct color
    terminated = np.array_equal(self.agent_pos, self.goal_pos) and self.agent_color == self.goal_color
    if terminated:
        reward += 100  # High reward for completing the objective
        info['is_success'] = True
    elif np.array_equal(self.agent_pos, self.goal_pos):  # Reaching the goal without the correct color
        pass # Eventually, I deleted this reward as well.
    elif self.agent_color == self.goal_color:  # Matching color without reaching the goal
        reward += 1

    # Truncation logic
    truncated = self.steps_taken >= max_steps
    if truncated:
        info["TimeLimit.truncated"] = True
        print(f"Episode truncated after {self.steps_taken} steps. No success achieved.")

    # Debugging information for termination
    if terminated:
        print(f"Agent Position: {self.agent_pos}, Goal Position: {self.goal_pos}")
        print(f"Agent Color: {self.agent_color}, Goal Color: {self.goal_color}")
        print(f"Terminated: {terminated}")

    return self._get_obs(), reward, terminated, truncated, info '''

Training

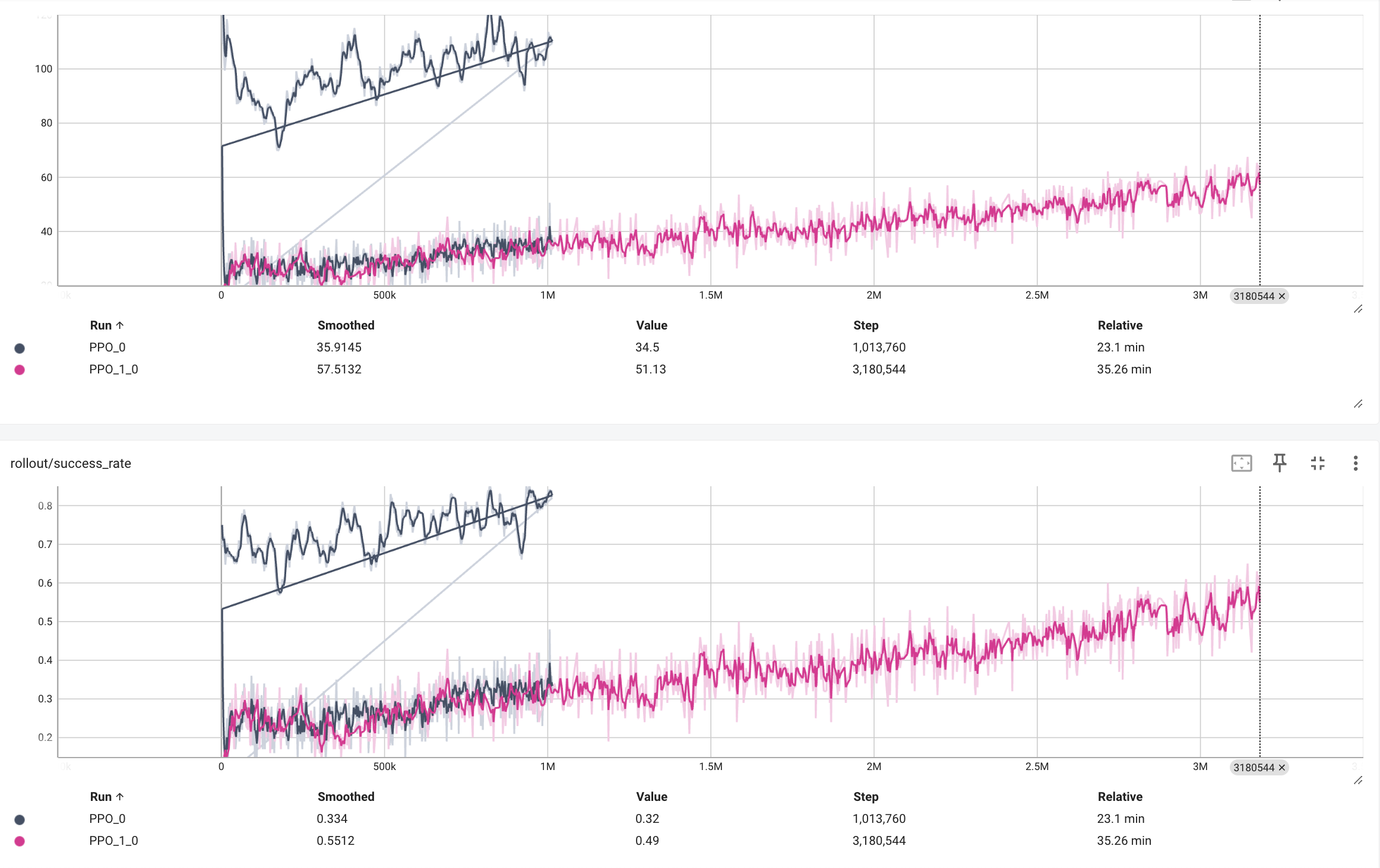

After tuning the reward mechanism to be as simple as possible, constructing the training algorithm was straightforward. Ensure sufficient training time! I monitored the training progress using TensorBoard. Although the progress was very slow, the trend of the episode reward mean and success rate was promising.

’’’ def train_agent(self): # Wrap the environment env = make_vec_env( lambda: SB3CompatibleEnv(PaintYourPartnerGymEnv(render_mode=None)), n_envs=1 )

    Create the PPO model with TensorBoard logging
    model = PPO(
        "MultiInputPolicy",
        env,
        verbose=1,
        ent_coef=0.05,
        tensorboard_log=self.tb_logs_dir
    )

    # Training loop
    TIMESTEPS = 10000
    episodes = 200
    for ep in range(1, episodes):
        model.learn(total_timesteps=TIMESTEPS, reset_num_timesteps=False, tb_log_name="PPO_1")
        model.save(f"{self.model_logs_dir}PPO_1/{TIMESTEPS*ep}")

    # Save the final model
    model.save(f"{self.model_logs_dir}PPO_1/trained_model_2.zip")
    print(f"Model saved to {self.model_logs_dir}PPO_1/trained_model_2.zip.")

    # Close the environment
    env.close() '''

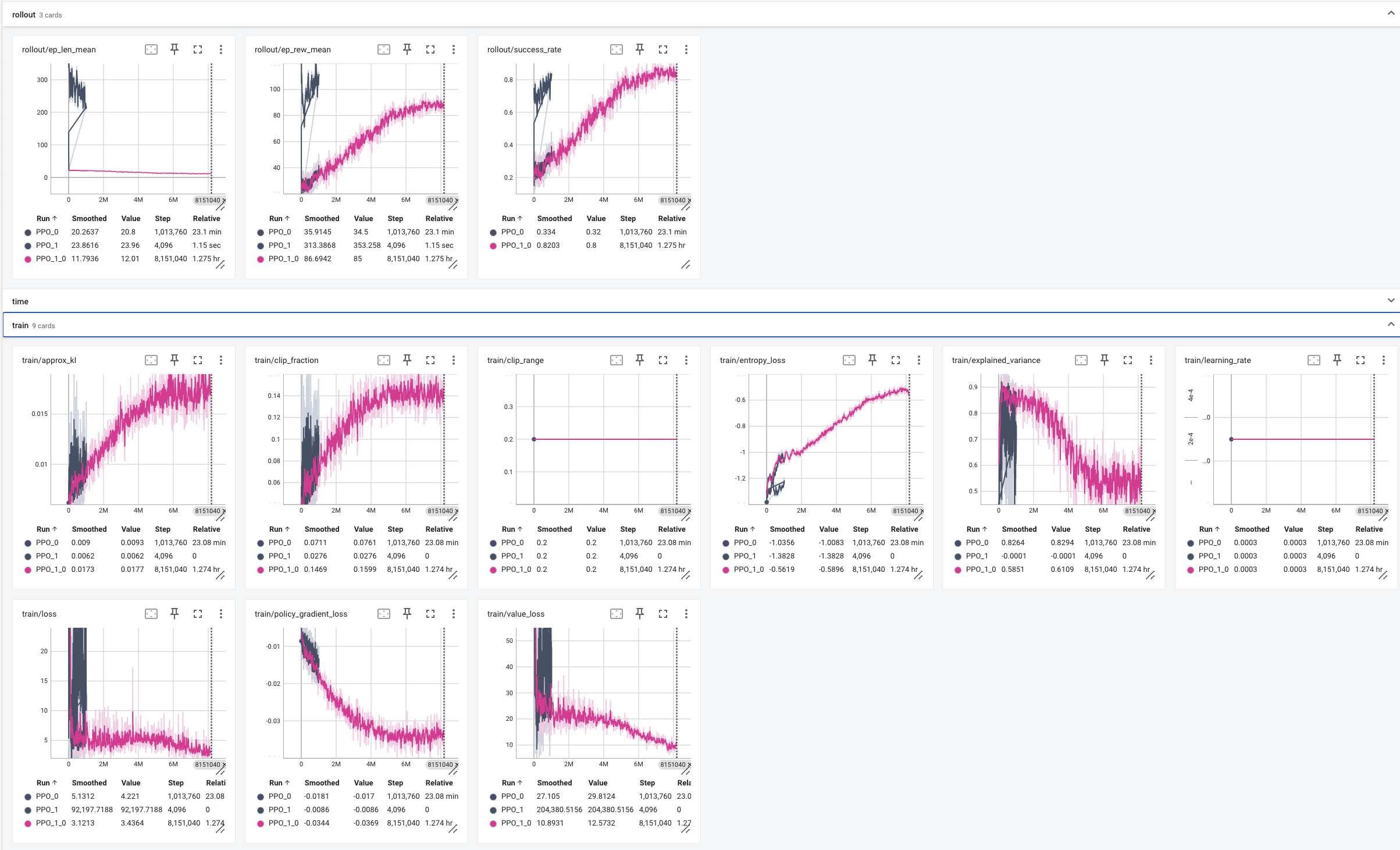

Tensorboard Report

Validation

Here’s the validation video of the resulting agent.

First version of PYP RL agent

Improved version of PYP RL agent

Thoughts

It turned out that the combination of the simplest reward mechanism and extended training time aligns well with the concept of RL. At first, I fine-tuned the reward mechanism, but the more I adjusted it, the more unexpected behaviors I encountered. Machines are remarkably good at uncovering the pitfalls of human logic.
